1. Superior Security & Automatic Locking：The keypad Deadbolt is ANSI/BHMA Grade 3 certified the Highest Residential Security Rating. Customizable automatic door locking after 10-99 seconds for peace of mind. Coming with low battery indicator, frees your worries about power-off. Alarm sounds after 5 consecutive entries and the keypad is deactivated for 45 seconds.

2.Keyless Entry & 6 User Codes：Keyless entry with a motorized driven deadbolt for 1 touch locking, back-lit keypad design for increased visibility, 6 customizable user codes in 4-10 digit along with temporary codes that can be used just once, perfect for visitors and service personnel.

3.Easy to Install & Hassle-Free：Single cylinder electronic deadbolt operates by keypad or key outside and thumb turn inside, Polo interior knob fits both right-handed and left-handed doors, easy install with just a screwdriver, fits door thickness of 1-3/8 in. to 2 in. (35mm-51mm), for backset 2-3/4’’(70mm) or 2-3/8’’(60mm.)

4.Style Made for Your World：The beveled design adds elegance to the traditional arched shape, matching handleset with a Polo interior knob makes the door looks completed. The crisp, clean appearance of the Satin Nickel finish brings the overall look a modern feel. Our hardware are designed so that you never have to sacrifice your security for style.

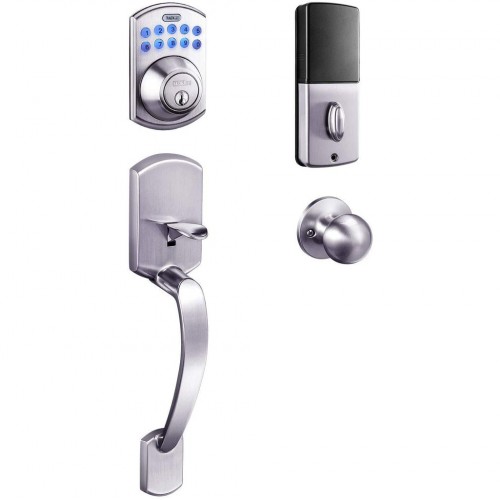

5.What You Get：1* Digital Deadbolt, 1* Grip, 1* Interior Knob, 1* Deadbolt Latch, 1* Spring Latch, 2* Cylinders, 1* Strike for Deadbolt Latch, 1* Strike for Spring Latch, 1* Screw Pack, 1* Installation Manual, 1* Template, 1* User Manual, 2 Keys

Product Specification

Power: DC6V, 4 AA (1.5v, LR6) alkaline batteries required.

Material: zinc alloy die casting

Surface: satin nickle

Suitable material: suitable for wooden door thickness of 1-3/8 in. to 2 in. (35mm-51mm)

Backset: 2-3/4’’ (70mm) or 2-3/8’’ (60mm) adjustable latch

Applicable ambient temperature: -20°C -70°C (without battery) Applicable ambient humidity: 30%-90% (RH) (without battery)

1.Security Never Looked So Sleek

The beveled design adds elegance to the traditional arched shape. Classic lines and enhanced styling make Polo a great choice for many home decors and the perfect enhancement for you to easily upgrade the entry to your home with this contemporary design. The single-cylinder deadbolt lock provides extra level of security where you need it most.

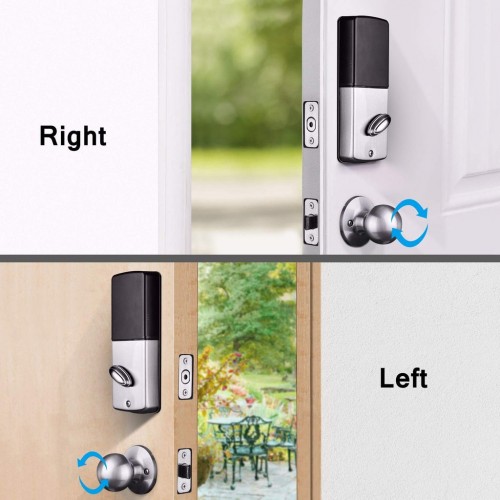

2.Fits both Right-Handed and Left-Handed Doors

The latch bolt is operated by the thumb piece on the outside and the knob on the inside. The deadbolt is operated by codes or a key on the outside and a thumb turn on the inside.

INSTALLATION NOTE:

1. Do not use an electric screwdriver during installation or over-tighten the screws.

2. The black hub of the latch must be in the lower position when fit the latch into the latch hole

3. Fit the alignment of the deadbolt latch and strike plate

4. Install cylinder into the deadbolt keypad assembly with tailpiece in horizontal position inserted through hub.

5. When install the receiver assembly, the thumb turn piece is opposite to the latching side and ensure the deadbolt tailpiece is engaged with turn piece.

6. Do the door handing identification process first after installation.Make sure the IC wire is connect firmly and the batteries are installed correctly and alive.

PROGRAMMING NOTE:

1. Before programming, do the door handing identification process first, the lock need to to learn if your door is a Right-Hand door or a Left-Hand door

2. Your lock can only be programmed in the unlocked position, every programming step should be done in 6 seconds.

3. If you delete all user code the keypad will no longer open the lock, you must use the key to enter the lock

4. If you disable all user code the keypad and auto-locking will no longer open the lock, you must use the key to enter the lock

5. After restoring default settings, you must run operation door handing identification process again before programming any other function

Fits Most of Standard Doors

1. Backset Determination

Backset is a distance from door edge to center of hole on door face.

Adjustable latch fits both backset of 2-3/8''(60mm) and 2-3/4''(70mm).

2. Hole's Diameters

Using the marks as guide to drill holes

Φ2-1/8''(54mm) or Φ1-1/2''(38mm)

3. Door Thickness

The door thickness within 1-3/8'' to 2'' (35mm-51mm) are all suitable for the keypad deadbolt handleset.

Video Link: https://www.youtube.com/watch?v=wYDfNO5fTGA
