• Switch Power Supply : Convert AC 110V/220V to DC 24V 15A 360W
  • Safety features: Shortage Protection, Overload Protection, Over Voltage Protection

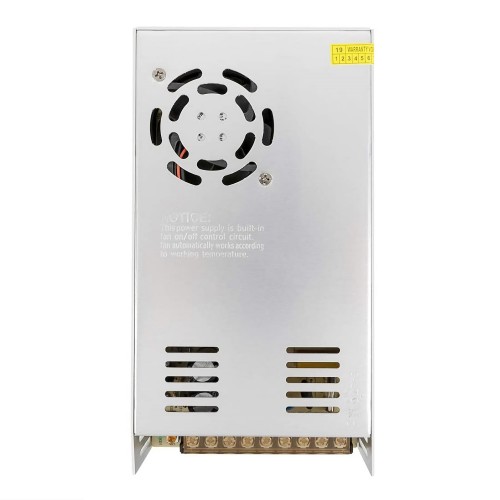

  • Built-in Temperature Controlled Cooling Fan: The cooling fan will start working when the temperature reaches above 45℃ ,and will stop below 45℃.
  • Widely Application: Wide input voltage range, steady and precise output voltage. Great for in Industrial Automation, LED display, Communications, Computer Project, Home Appliance, etc.

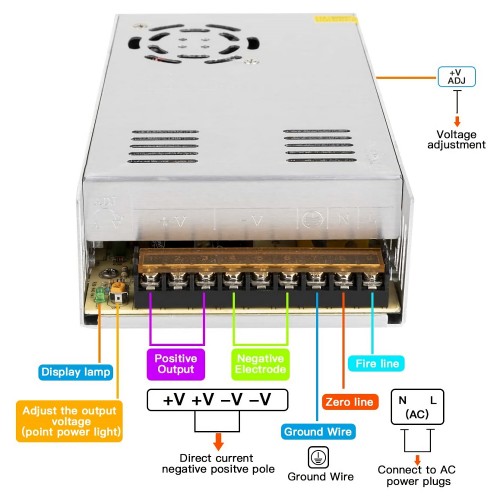

Connection instruction
L/N: AC power input
+V: DC power output "+"
COM: DC power output "-"
+V ADJ: Adjust the output voltage (15%)

NOTE:

1. High Voltage inside, do not remove the cover.

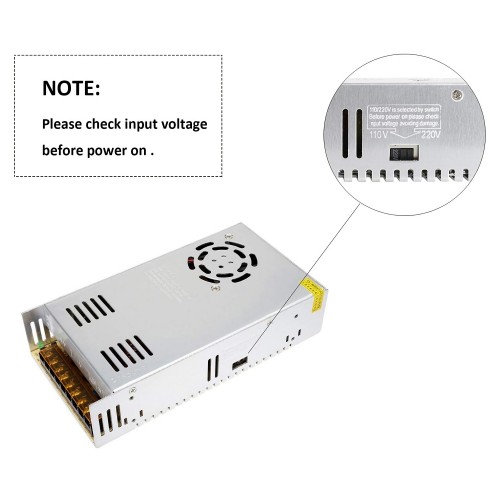

2. 110V/220V must be selected by switch before using to avoid damaging.
3. Due to its widely applications,it comes without installation instruction, wiring cable, on/off switch and screws.
4. The temperature controlled cooling fan does make a noise and the speed is load based.
5. Indoor use ONLY


Package Contents

1 x 360W Regulated Switching Power Supply


Material: Metal, Electronic Parts
Input: AC110V/220V 50/60Hz
Output : DC 24V 15A 360W max
Fix Screw Hole Diameter: 2.5mm (0.1inch)
Working temperature: -20 to 50 degree Celsius
Storage temperature: -20 to 60 degree Celsius
Environmental humidity: 20-90%

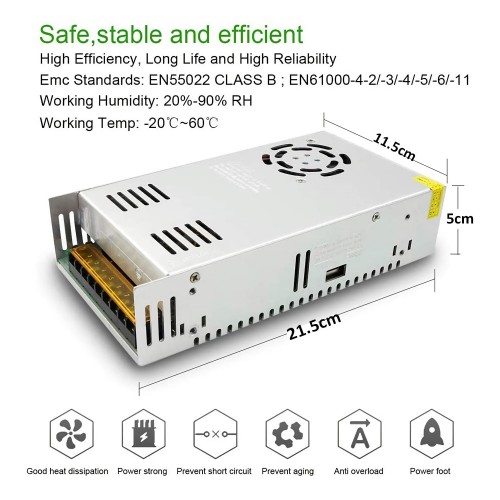

Product Size: 21.5 x 11.5 x 5 cm
Package Size: 27 x 16 x 8 cm



Write a review

Note: HTML is not translated!
    Bad           Good

REDREX 24V 15A DC Universal Regulated Switching Power Supply Unit 360W Built with Temperature-Controlled Cooling Fan for CCTV, Radio, Computer Project, 3D Printer, LED Driver

  • Product Code: PowerSupply_REDREX_24V
  • Availability: In Stock
  • CAD$69.99
