Deliver a steady and efficient flow of power to your system with the CYBERCORE 1300W 80 PLUS Platinum Modular Power Supply from XPG. Designed for enthusiasts, this ATX power supply delivers up to 1300W of power across one +12V rail with a power 80 PLUS Platinum energy efficiency rating of up to 92% at 50% load. The fully modular braided cables allow you to use only what you need, cutting down on cable clutter and improving the airflow inside your system. This power supply comes with cables to support motherboard power, storage drives, peripheral devices, and graphics cards.

Features:

1.XPG CYBERCORE series power supplies are certified by the highest Cybenetics quality standards. All CYBERCORE power supplies have achieved ETA PLATINUM grade while still maintaining LAMBDA A- rating for noise in a compact form factor.

2.XPG CYBERCORE's efficiency achieves 92.91% 115VAC at 50% load (operating temperature at 25°C), delivering exemplary performance even by 80 PLUS PLATINUM standards.

Efficient Fan Curve

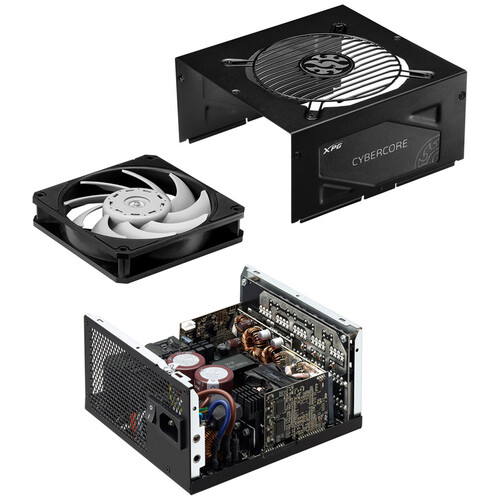

3.XPG CYBERCORE is the latest XPG and Nidec collaboration, utilizing the highest tier XPG VENTO PRO 120 PWM Fan for its high cooling efficiency, featuring Dual Bearing and patented technology to maintain an excellent balance between noise and life expectancy at 60,000 hours at 60°C.

All Japanese 105°C Grade Capacitors

4.XPG CYBERCORE PLATINUM series utilizes all-Japanese high quality 105°C grade capacitors to ensure power delivery is stable, consistent, and efficient.

5.The power supply's power delivery efficiency is optimized via Digital Control Panel. It controls, commands, and optimizes power delivery efficiency and stability, ensuring the process is stable but also accurate, and such accuracy protects other components during the process of the power delivery.

6.DC-to-DC Circuit design minimizes ripple noise, avoids unbalanced power load, and acts as a protective safeguard to component life expectancy.

7.XPG CYBERCORE Interleaved PFC (Power Factor Correction) regulated and stabilizes voltage, and distributes power at its optimal efficiency, leveraging two chokes that alternate each other, reducing power loss during conversion. XPG CYBERCORE's PFC is Active, meaning it provides better power efficiency, automatically correcting AC input voltage.

80 PLUS RATING: PLATINUM

ATX Version: Intel ATX 12V v2.52

Input Voltage: 100-240V

Input Current: 1300W 13A  50Hz-60Hz

Operating Temperature: 50°C

Fan Speed: 2,150 RPM

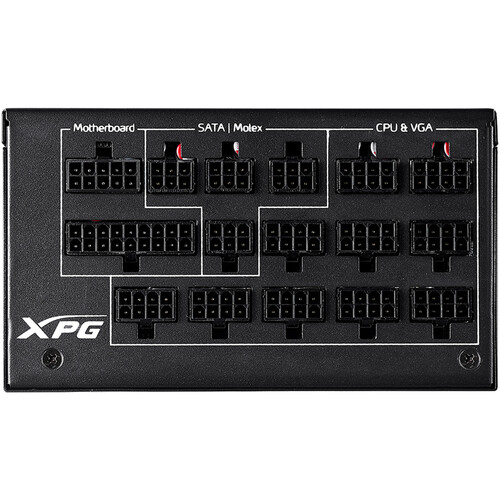

ATX 24 Pin Connector:  1300W：1

EPS 8 (4+4) Pin Connector:  1300W：2

PCI-E 6+2 Pin Connector:  1300W：10

SATA Connector:  1300W：16

Peripheral 4 Pin Connector:  1300W：8

Floppy 4 Pin Connector:  1300W：2

Dimensions (L x W x H): 160 x 150 x 86mm

Package Size:34*21*17cm
